Places Print button

The Places view includes an interactive map viewer which allows you to search for places mentioned in your family tree.

Places list

Places are displayed in groups by person, place, address, repository or author.  The list can be filtered using the filter box above the list.  Groups of places can be collapsed / displayed by clicking the group title.

The interactive map viewer

Fig 1. Places grouped by description.

Searching for places

You can search for a place name or navigate to a pair of latitude and longitude coordinates by typing these into the search box.  Click the search button to start the search.  Multiple matches will be listed beneath the search box and single results will be immediately displayed on the map.

The search box

Fig 2. The search box.

To get the best results from a place name search start a query with the most specific detail e.g. the village or town and then become more general e.g. the county or country.

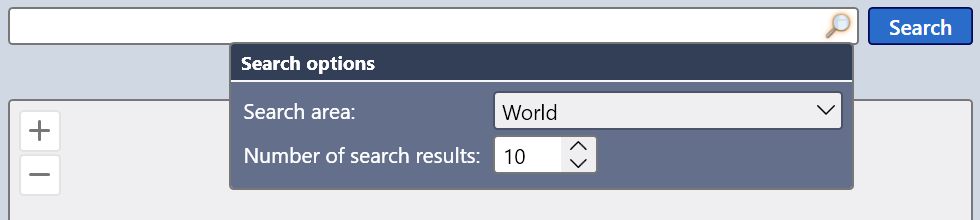

Search options can be accessed by pressing the search options button.  You can customise some parameters of the search.  Use the search are to limit the search to a particular country.  If you make extensive use of the feature you must sign up for a free search key from Mapzen.

The search box

Fig 3. The search options.

Map viewer

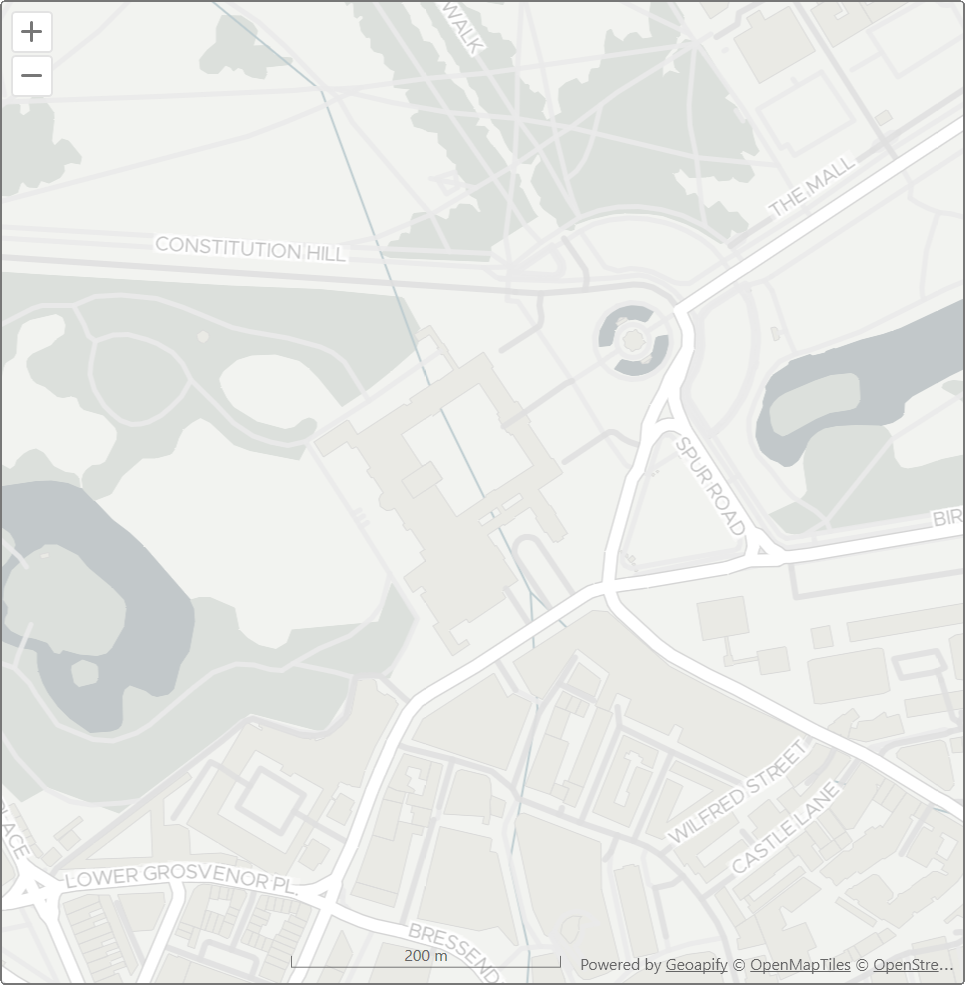

The map viewer can be used to navigate to places or to search for places.  If the place has coordinates the map viewer will automatically navigate to that place when it is selected from the places list.

The interactive map viewer

Fig 4. The interactive map viewer.

Map controls

The map controls are simple to use.  Pan the map using the mouse or touch.  Zoom in or out using the mouse scroll wheel or the zoom in and out buttons.

The map controls

Fig 5. The map controls.

Editing places

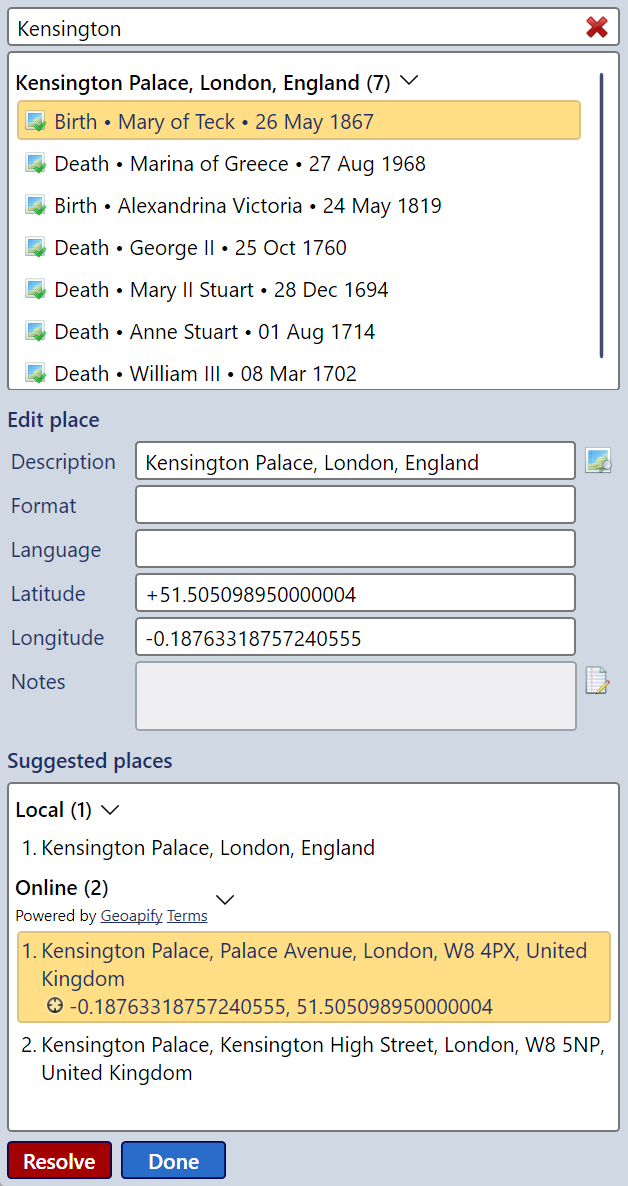

All instances of a place in the selected group are edited simultaneously using the edit place panel.  There are also tools to geocode place names.

Editing places

Fig 6. The edit place panel.

Resolving places and geocoding

To match a partial place name or geocode a place name, click the place search button in the place editor to search. Two types of result are shown: local matches from your file and online matches from third party data sources. Select the best match and click the accept suggestion button to make the changes.   You can also add missing coordinates directly from a point on the current map.  Right click a place and select "Select coordinates from map".

Places with resolved coordinates are shown with an map check icon in the places list.  These can be filtered by entering "resolved" or "!resolved" (unresolved) as a filter query.

Deleting places

To delete a place, select it in the places list and press the "Delete" key or right click to choose "Delete".

Place coordinates

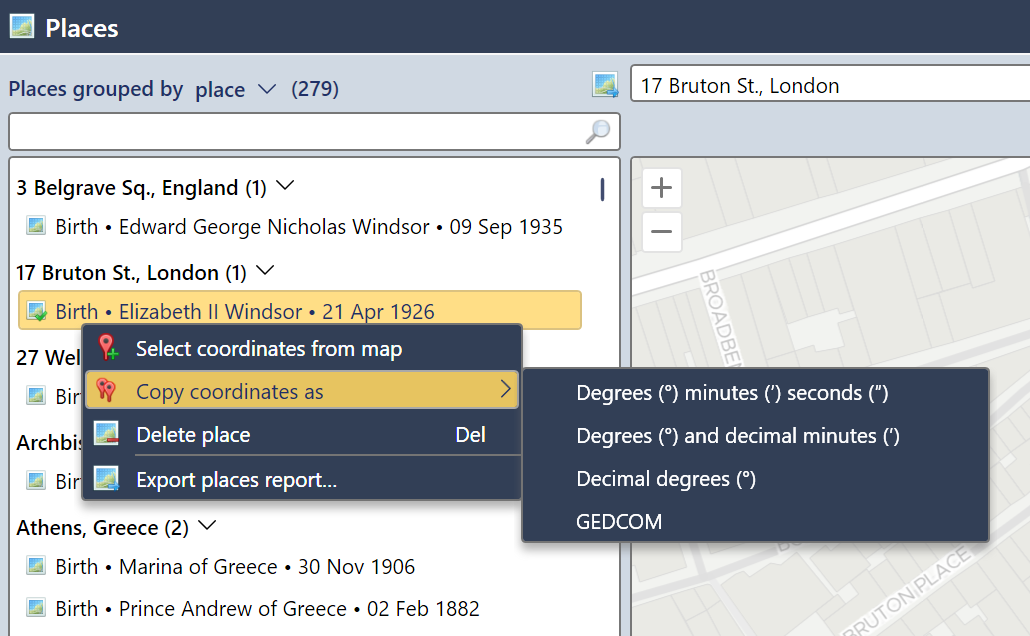

Place coordinates are stored in a culture decimal degrees format.  Coordinates can be entered in degrees/seconds/minutes format with N, E, S, and W suffixes and these will be converted to this format.  To copy coordinates in another format, right click a resolved place in the places list, select "Copy coordinates as" and choose one of the possible formats.

Copying coordinates

Fig 7. Copying coordinates.

Coordinates format

Place coordinates are stored in decimal degrees format.  To copy coordinates in another format, right click a resolved place in the places list, select "Copy coordinates as" and choose one of the possible formats.

Places Report

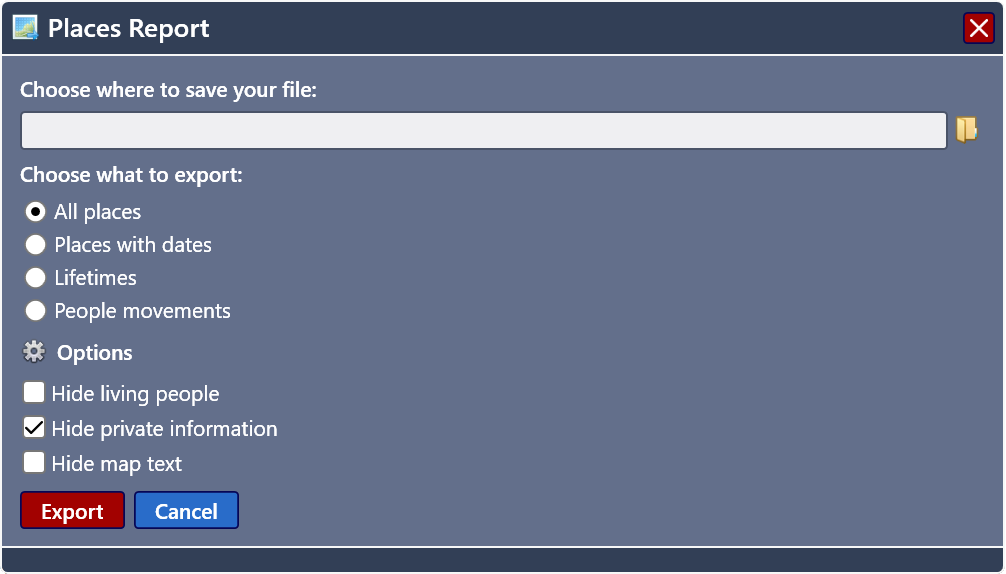

Use the Places Report tool to export place information for use in other mapping services.  The tool creates a Keyhole Markup Language (*.kml or compressed *.kmz) file containing the places of all the events in your family tree along with coordinates and dates if these are known.

The Places Report tool

Fig 8. The Places Report tool.

Privacy

You can use privacy options to remove personal details of living people or people who have been marked as private within My Family Tree.  Selecting the "Hide living people" option prevents export of all information about living people apart from their surname. Selecting the "Hide private information" option prevents export of any information marked as private.
